Fifth Posting: LAB 3

 In this lab  we are making a "program". That means that we have a total freedom of what we can write on the 6502 emulator and write about it on blog.

As my hobby is a video game i went on decided to create a game that might be a bit interesting. As soon as i saw this lab's topic i thought of snake game, the game that everyone knows how to play.

But just making the snake game might be a bit boring, i want to extend this game into something more challenging as an extra.

So this is my basic idea:
So lets make an snake game and i believe  that should be good enough to fulfill all the requirements for the Lab so lets do that and maybe time to time we can extend this to something more fun....

Making muti-dimensional snake game where you play one snake with just normal arrow movement.

and at the same-time you play second snake in same screen??? But lets complete basic snake game first.


The basic idea is there but it will be more developed as I progress through out this lab. So lets dive into make our first snake.

Before we jump on making the snake game i guess there are a lot of things that we might need to think about

    - pixeled color location should be move-able when ever we press movement keys (as its changing locations as we press movement keys)

    - As the snake "eats" the target pixel then the original move-able pixel increase in length.

    - And this length should be also moving towards the direction that is following with movement key. So there should be head and tail.

    - Some of the movement should not be done. for an example in snake game the snake cannot move opposite direction right away in same row or column. It usually takes a full cycle of going right,down,left or left,right,right or right down or left down and so on.. There are many ways to go to opposite direction and we have to figure out what can be the direct reaction(output) when the condition is not met.

 I guess those are pretty much it that we might have to consider prior to creating one when it comes to "making game" so now let dive into coding this.

So first i believe that we nee the snake, since we have black back ground ready as default why don't we start with three dots

This is great! Now we can see the three dots on the top left of the emulator

LDX #$00 initializes X register to 0

Then inside of DrawLoop we Load our color, LDA #$FF

Then we increment X with INC

CPX #$03 to comp02

are Xposition to 3

Then if X is not 3 yet, loop back and write more pixels.

So now we can see that the white pixels are wirtten on ($FF) $0200, $0201, $02

Now we see that we have three dots, what could be the next?

Maybe making the pixles moveable with our keyboard?

When we are moving those we have to think about few things

-    We are not making it as "you have to continously press the moving key, pressing once will move the "snake"

-    We are moving whole pixels, not one or two minimum three and maximum as much as player stacks the target "apple"

-   Our moving key for this snake will be W,A,S,D

So now that we have displayed thre white pixels on the screen, lets start bringing them to life by introducting movement. The idea is to simulate a "snake" moving across the screen. At this stage, the snake moves automatically from left to right.

snakeX: .res 1      ; reserve 1 byte for snakeX

snakeY: .res 1      ; reserve 1 byte for snakeY

offset: .res 1      ; reserve 1 byte for offset

Start:

    LDA #$00

    STA snakeX

    STA snakeY

loop:

    JSR clearSnake

    INC snakeX

    JSR drawSnake

    JSR delay

    JMP loop

clearSnake:

    LDX snakeX

    LDY #$00

clearLoop:

    LDA #$00

    STA $0200,X

    INX

    INY

    CPY #$03

    BNE clearLoop

    RTS

drawSnake:

    LDX snakeX

    LDY #$00

drawLoop:

    LDA #$FF

    STA $0200,X

    INX

    INY

    CPY #$03

    BNE drawLoop

    RTS

delay:

    LDX #$FF

delayLoop:

    DEX

    BNE delayLoop

    RTS

    BRK

in here we enhanced our simple program from displaying just three pixels to animating basic horizontal movement.
Initialization: we have defined two variables snakeX, snakeY to track the snake's position and one temp vars offset to help calculate screen addresses.

initially set snake's starting position at the top left corner of the screen (0,0)

Main Loop: erase three pixels that is considered as snake's previous position by writing black as well ($00) and move snake by incrementing snakeXposition by one, moving the snake to the right. And draw three consecutive white pixels $FF starting from new snake's horizontal position and delay to make it a bit visible.

Next we implement basic movement with wasd, make sure to increase speed this time for making smoother movements.

define snakeHeadL     $10 ; low byte screen addr

define snakeHeadH     $11 ; high byte screen addr

define snakeBodyStart $12 ; first body segment (2 segments total)

define snakeDirection $02

define movingUp       1

define movingRight    2

define movingDown     4

define movingLeft     8

define ASCII_w        $77

define ASCII_a        $61

define ASCII_s        $73

define ASCII_d        $64

define sysLastKey     $ff

define SCREEN         $0200

  jsr initSnake

mainLoop:

  jsr readKeys

  jsr updateSnake

  jsr clearScreen

  jsr drawSnake

  jsr delay

  jmp mainLoop

initSnake:

  lda #movingRight

  sta snakeDirection

  lda #$00

  sta snakeHeadL

  lda #$03

  sta snakeHeadH

  ; body segment positions (behind head initially)

  lda #$1F

  sta $12       ; segment 1 low

  lda #$02

  sta $13       ; segment 1 high

  lda #$1E

  sta $14       ; segment 2 low

  lda #$02

  sta $15       ; segment 2 high

  rts

readKeys:

  lda sysLastKey

  cmp #ASCII_w

  beq upKey

  cmp #ASCII_d

  beq rightKey

  cmp #ASCII_s

  beq downKey

  cmp #ASCII_a

  beq leftKey

  rts

upKey:

  lda #movingDown

  bit snakeDirection

  bne illegalMove

  lda #movingUp

  sta snakeDirection

  rts

rightKey:

  lda #movingLeft

  bit snakeDirection

  bne illegalMove

  lda #movingRight

  sta snakeDirection

  rts

downKey:

  lda #movingUp

  bit snakeDirection

  bne illegalMove

  lda #movingDown

  sta snakeDirection

  rts

leftKey:

  lda #movingRight

  bit snakeDirection

  bne illegalMove

  lda #movingLeft

  sta snakeDirection

  rts

illegalMove:

  rts

updateSnake:

; shift body positions first (segments follow head)

  lda $14

  sta $12

  lda $15

  sta $13

  lda snakeHeadL

  sta $14

  lda snakeHeadH

  sta $15

; then update head based on direction

  lda snakeDirection

  lsr

  bcs up

  lsr

  bcs right

  lsr

  bcs down

  lsr

  bcs left

  rts

up:

  lda snakeHeadL

  sec

  sbc #$20

  sta snakeHeadL

  bcc upwrap

  rts

upwrap:

  dec snakeHeadH

  lda snakeHeadH

  cmp #$02

  bcc setBottom

  rts

setBottom:

  lda #$05

  sta snakeHeadH

  rts

right:

  inc snakeHeadL

  lda snakeHeadL

  and #$1f

  beq wrapRight

  rts

wrapRight:

  sec

  lda snakeHeadL

  sbc #$20

  sta snakeHeadL

  inc snakeHeadH

  lda snakeHeadH

  cmp #$06

  bne noWrapRight

  lda #$02

  sta snakeHeadH

noWrapRight:

  rts

down:

  lda snakeHeadL

  clc

  adc #$20

  sta snakeHeadL

  bcs downwrap

  rts

downwrap:

  inc snakeHeadH

  lda snakeHeadH

  cmp #$06

  bne noWrapDown

  lda #$02

  sta snakeHeadH

noWrapDown:

  rts

left:

  dec snakeHeadL

  lda snakeHeadL

  and #$1f

  cmp #$1f

  beq leftwrap

  rts

leftwrap:

  dec snakeHeadH

  lda snakeHeadH

  cmp #$02

  bcc wrapTop

  lda snakeHeadL

  ora #$1f

  sta snakeHeadL

  rts

wrapTop:

  lda #$05

  sta snakeHeadH

  lda snakeHeadL

  ora #$1f

  sta snakeHeadL

  rts

clearScreen:

  lda #0

  ldx #0

clrLoop:

  sta $0200,x

  sta $0300,x

  sta $0400,x

  sta $0500,x

  inx

  bne clrLoop

  rts

drawSnake:

  ldy #0

  lda #$FF



  ;draw head

  sta (snakeHeadL),y



  ;draw first body segment

  sta ($12),y



  ;draw second body segment

  sta ($14),y

  rts

delay:

  ldy #$20

delayloop:

  ldx #0

innerdelay:

  dex

  bne innerdelay

  dey

  bne delayloop

  rts

Video of moving with wasd

We now have a working snake smoothly moving aroudn the screen. First i introduced the initSnake which sets up the initial position and direction of our snake. The head position and two additional body segments are initialized here.

initSnake:

  lda #movingRight

  sta snakeDirection

  lda #$00

  sta snakeHeadL

  lda #$03

  sta snakeHeadH

  ; body segment positions (behind head initially)

  lda #$1F

  sta $12       ; segment 1 low

  lda #$02

  sta $13       ; segment 1 high

  lda #$1E

  sta $14       ; segment 2 low

  lda #$02

  sta $15       ; segment 2 high

  rts

The core logic of our game runs continously in mainLoop, ensuring constant updates and responsiveness. Each iteration of the loop processors user input (readKeys), updates the snake's position (updateSnake), clears the screen (clearScreen), redraws the snake (drawSnake), and introduces a visual delay.

mainLoop:

  jsr readKeys

  jsr updateSnake

  jsr clearScreen

  jsr drawSnake

  jsr delay

  jmp mainLoop

The readKeys connects with WASD keys to find direction and includes checks to prevent isntant reversal of the snake's direction, which we mentioned previously that it should be prohibited.

readKeys:

  lda sysLastKey

  cmp #ASCII_w

  beq upKey

  cmp #ASCII_d

  beq rightKey

  cmp #ASCII_s

  beq downKey

  cmp #ASCII_a

  beq leftKey

  rts

upKey:

  lda #movingDown

  bit snakeDirection

  bne illegalMove

  lda #movingUp

  sta snakeDirection

  rts

rightKey:

  lda #movingLeft

  bit snakeDirection

  bne illegalMove

  lda #movingRight

  sta snakeDirection

  rts

downKey:

  lda #movingUp

  bit snakeDirection

  bne illegalMove

  lda #movingDown

  sta snakeDirection

  rts

leftKey:

  lda #movingRight

  bit snakeDirection

  bne illegalMove

  lda #movingLeft

  sta snakeDirection

  rts

illegalMove:

  rts

In updateSnake each body segment's position is shifted forward, effectively following the head. Then the head is moved according to the current direction. Also made it reappear from opposite side of screen when it goes over the screen.

updateSnake:

; shift body positions first (segments follow head)

  lda $14

  sta $12

  lda $15

  sta $13

  lda snakeHeadL

  sta $14

  lda snakeHeadH

  sta $15

; then update head based on direction

  lda snakeDirection

  lsr

  bcs up

  lsr

  bcs right

  lsr

  bcs down

  lsr

  bcs left

  rts

And clearScreen resets all pixels to back ($00), ensuring only the current snake position is shown clearly:

clearScreen:

  lda #0

  ldx #0

clrLoop:

  sta $0200,x

  sta $0300,x

  sta $0400,x

  sta $0500,x

  inx

  bne clrLoop

  rts

Next we can implement apple and disappearing apple when snake hits them!

; === Definitions ===

define snakeHeadL     $10 ; head low byte

define snakeHeadH     $11 ; head high byte

define snakeBodyStart $12 ; body segments

define snakeDirection $02

define appleL         $20 ; apple low byte

define appleH         $21 ; apple high byte

define movingUp       1

define movingRight    2

define movingDown     4

define movingLeft     8

define ASCII_w        $77

define ASCII_a        $61

define ASCII_s        $73

define ASCII_d        $64

define sysLastKey     $ff

define sysRandom      $fe ; emulator random byte

define SCREEN         $0200

  jsr initSnake

  jsr spawnApple     ; NEW: initial apple spawn

mainLoop:

  jsr readKeys

  jsr updateSnake

  jsr checkApple     ; NEW: check collision with apple

  jsr clearScreen

  jsr drawApple      ; NEW: draw apple

  jsr drawSnake

  jsr delay

  jmp mainLoop

initSnake:

  lda #movingRight

  sta snakeDirection

  lda #$00

  sta snakeHeadL

  lda #$03

  sta snakeHeadH

  ; snake body (2 segments)

  lda #$1F

  sta $12

  lda #$02

  sta $13

  lda #$1E

  sta $14

  lda #$02

  sta $15

  rts

; === Spawn Apple at random ===

spawnApple:

  lda sysRandom

  and #$1F

  sta appleL

  lda sysRandom

  and #$03

  clc

  adc #$02

  sta appleH

  rts

; === Check collision snake-apple ===

checkApple:

  lda snakeHeadL

  cmp appleL

  bne noApple

  lda snakeHeadH

  cmp appleH

  bne noApple

  jsr spawnApple  ; respawn apple if eaten

noApple:

  rts

readKeys:

  lda sysLastKey

  cmp #ASCII_w

  beq upKey

  cmp #ASCII_d

  beq rightKey

  cmp #ASCII_s

  beq downKey

  cmp #ASCII_a

  beq leftKey

  rts

upKey:

  lda #movingDown

  bit snakeDirection

  bne illegalMove

  lda #movingUp

  sta snakeDirection

  rts

rightKey:

  lda #movingLeft

  bit snakeDirection

  bne illegalMove

  lda #movingRight

  sta snakeDirection

  rts

downKey:

  lda #movingUp

  bit snakeDirection

  bne illegalMove

  lda #movingDown

  sta snakeDirection

  rts

leftKey:

  lda #movingRight

  bit snakeDirection

  bne illegalMove

  lda #movingLeft

  sta snakeDirection

  rts

illegalMove:

  rts

updateSnake:

; shift body positions

  lda $14

  sta $12

  lda $15

  sta $13

  lda snakeHeadL

  sta $14

  lda snakeHeadH

  sta $15

; move head

  lda snakeDirection

  lsr

  bcs up

  lsr

  bcs right

  lsr

  bcs down

  lsr

  bcs left

  rts

up:

  lda snakeHeadL

  sec

  sbc #$20

  sta snakeHeadL

  bcc upwrap

  rts

upwrap:

  dec snakeHeadH

  lda snakeHeadH

  cmp #$02

  bcc setBottom

  rts

setBottom:

  lda #$05

  sta snakeHeadH

  rts

right:

  inc snakeHeadL

  lda snakeHeadL

  and #$1f

  beq wrapRight

  rts

wrapRight:

  sec

  lda snakeHeadL

  sbc #$20

  sta snakeHeadL

  inc snakeHeadH

  lda snakeHeadH

  cmp #$06

  bne noWrapRight

  lda #$02

  sta snakeHeadH

noWrapRight:

  rts

down:

  lda snakeHeadL

  clc

  adc #$20

  sta snakeHeadL

  bcs downwrap

  rts

downwrap:

  inc snakeHeadH

  lda snakeHeadH

  cmp #$06

  bne noWrapDown

  lda #$02

  sta snakeHeadH

noWrapDown:

  rts

left:

  dec snakeHeadL

  lda snakeHeadL

  and #$1f

  cmp #$1f

  beq leftwrap

  rts

leftwrap:

  dec snakeHeadH

  lda snakeHeadH

  cmp #$02

  bcc wrapTop

  lda snakeHeadL

  ora #$1f

  sta snakeHeadL

  rts

wrapTop:

  lda #$05

  sta snakeHeadH

  lda snakeHeadL

  ora #$1f

  sta snakeHeadL

  rts

clearScreen:

  lda #0

  ldx #0

clrLoop:

  sta $0200,x

  sta $0300,x

  sta $0400,x

  sta $0500,x

  inx

  bne clrLoop

  rts

; ===draw apple ===

drawApple:

  lda #$AA ; Apple color (distinct from snake)

  ldy #0

  sta (appleL),y

  rts

drawSnake:

  lda #$FF ; Snake color

  ldy #0

  sta (snakeHeadL),y

  sta ($12),y

  sta ($14),y

  rts

delay:

  ldy #$20

delayloop:

  ldx #0

innerdelay:

  dex

  bne innerdelay

  dey

  bne delayloop

  rts

We have now brought another part to our game here - apples! So for ths i started wth making spawnApple subroutine, which randomly positions apple on the screen each time the game begins and whenever snake hits them.

; === Spawn Apple at random ===

spawnApple:

  lda sysRandom

  and #$1F

  sta appleL

  lda sysRandom

  and #$03

  clc

  adc #$02

  sta appleH

  rts

in here sysRandom generates a random position within screen bounds, ensuring the apple appears unpredictable each time.



Next the drawApple subroutine visually represents the apple using a distinct color($AA)

; ===draw apple ===

drawApple:

  lda #$AA ; Apple color (distinct from snake)

  ldy #0

  sta (appleL),y

  rts

And now we have checkApple subroutine, which compares the apple's position with the snake head's current position and if they are matching then the apple has been eaten by snake. Then apple immediately respawns at a new random positon

; === Check collision snake-apple ===

checkApple:

  lda snakeHeadL

  cmp appleL

  bne noApple

  lda snakeHeadH

  cmp appleH

  bne noApple

  jsr spawnApple  ; respawn apple if eaten

noApple:

  rts



Okay i think now we have some important parts in placed, now lets go ahead and do the "Snake length increase on apple eating"

define snakeHeadL     $10

define snakeHeadH     $11

define snakeLength    $12

define snakeDirection $13

define snakeBodyStart $30 ; Snake body starts here (many segments allowed)

define appleL         $80 ; Apple moved to safer location

define appleH         $81

define movingUp       1

define movingRight    2

define movingDown     4

define movingLeft     8

define ASCII_w        $77

define ASCII_a        $61

define ASCII_s        $73

define ASCII_d        $64

define sysLastKey     $ff

define sysRandom      $fe

define SCREEN         $0200

  jsr initSnake

  jsr spawnApple

mainLoop:

  jsr readKeys

  jsr updateSnake

  jsr checkApple

  jsr clearScreen

  jsr drawApple

  jsr drawSnake

  jsr delay

  jmp mainLoop

initSnake:

  lda #movingRight

  sta snakeDirection

  lda #3

  sta snakeLength

  lda #$00

  sta snakeHeadL

  lda #$03

  sta snakeHeadH

  ; initial snake body segments

  lda #$1F

  sta $30

  lda #$02

  sta $31

  lda #$1E

  sta $32

  lda #$02

  sta $33

  rts

spawnApple:

  lda sysRandom

  and #$1F

  sta appleL

  lda sysRandom

  and #$03

  clc

  adc #$02

  sta appleH

  rts

checkApple:

  lda snakeHeadL

  cmp appleL

  bne noApple

  lda snakeHeadH

  cmp appleH

  bne noApple

  ; Snake eats apple

  inc snakeLength    ; Increase snake length by 1

  jsr spawnApple     ; Respawn apple after eaten

noApple:

  rts

readKeys:

  lda sysLastKey

  cmp #ASCII_w

  beq upKey

  cmp #ASCII_d

  beq rightKey

  cmp #ASCII_s

  beq downKey

  cmp #ASCII_a

  beq leftKey

  rts

upKey:

  lda #movingDown

  bit snakeDirection

  bne illegalMove

  lda #movingUp

  sta snakeDirection

  rts

rightKey:

  lda #movingLeft

  bit snakeDirection

  bne illegalMove

  lda #movingRight

  sta snakeDirection

  rts

downKey:

  lda #movingUp

  bit snakeDirection

  bne illegalMove

  lda #movingDown

  sta snakeDirection

  rts

leftKey:

  lda #movingRight

  bit snakeDirection

  bne illegalMove

  lda #movingLeft

  sta snakeDirection

  rts

illegalMove:

  rts

updateSnake:

  ldx snakeLength

  dex

  txa

  asl

  tax

shiftLoop:

  cpx #2

  bcc shiftDone

  lda $2E,x    ; snakeHeadL ($10,$11) = body-2 = $2E,$2F

  sta $30,x

  lda $2F,x

  sta $31,x

  dex

  dex

  jmp shiftLoop

shiftDone:

  lda snakeHeadL

  sta $30

  lda snakeHeadH

  sta $31

  lda snakeDirection

  lsr

  bcs up

  lsr

  bcs right

  lsr

  bcs down

  lsr

  bcs left

  rts

up:

  lda snakeHeadL

  sec

  sbc #$20

  sta snakeHeadL

  bcc upwrap

  rts

upwrap:

  dec snakeHeadH

  lda snakeHeadH

  cmp #$02

  bcc setBottom

  rts

setBottom:

  lda #$05

  sta snakeHeadH

  rts

right:

  inc snakeHeadL

  lda snakeHeadL

  and #$1f

  beq wrapRight

  rts

wrapRight:

  sec

  lda snakeHeadL

  sbc #$20

  sta snakeHeadL

  inc snakeHeadH

  lda snakeHeadH

  cmp #$06

  bne noWrapRight

  lda #$02

  sta snakeHeadH

noWrapRight:

  rts

down:

  lda snakeHeadL

  clc

  adc #$20

  sta snakeHeadL

  bcs downwrap

  rts

downwrap:

  inc snakeHeadH

  lda snakeHeadH

  cmp #$06

  bne noWrapDown

  lda #$02

  sta snakeHeadH

noWrapDown:

  rts

left:

  dec snakeHeadL

  lda snakeHeadL

  and #$1f

  cmp #$1f

  beq leftwrap

  rts

leftwrap:

  dec snakeHeadH

  lda snakeHeadH

  cmp #$02

  bcc wrapTop

  lda snakeHeadL

  ora #$1f

  sta snakeHeadL

  rts

wrapTop:

  lda #$05

  sta snakeHeadH

  lda snakeHeadL

  ora #$1f

  sta snakeHeadL

  rts

clearScreen:

  lda #0

  ldx #0

clrLoop:

  sta $0200,x

  sta $0300,x

  sta $0400,x

  sta $0500,x

  inx

  bne clrLoop

  rts

drawApple:

  lda #$AA

  ldy #0

  sta (appleL),y

  rts

drawSnake:

  ldy #0

  lda #$FF

  sta (snakeHeadL),y ; head

  ldx #0

drawBodyLoop:

  lda $30,x

  sta $00

  lda $31,x

  sta $01

  lda #$FF

  sta ($00),y

  inx

  inx

  cpx snakeLength

  bcc drawBodyLoop

  rts

delay:

  ldy #$20

delayloop:

  ldx #0

innerdelay:

  dex

  bne innerdelay

  dey

  bne delayloop

  rts

In the here we implemented logic that allows our snake to detect and respond when it successfully eats an apple. Each frame, the snake's head position is compared with apple's position, and if horizontal or vertical positions match same then we say snake has eaten the apple. And then we increment the snake's length with inc snakeLength to make it grow one segment.

checkApple:

  lda snakeHeadL

  cmp appleL

  bne noApple

  lda snakeHeadH

  cmp appleH

  bne noApple

  ; Snake eats apple

  inc snakeLength    ; Increase snake length by 1

  jsr spawnApple     ; Respawn apple after eaten

noApple:

  rts

reference:

https://skilldrick.github.io/easy6502/

8th Posting: Project 1

For this project we are going to make custom GCC pass for our GCC compiler that we done in Lab 4. The requirements simply follows:

Create a pass for the current development version of the GCC compiler which:

1. Iterates through the code being compiled;
2. Prints the name of every function being compiled;
3. Prints a count of the number of basic blocks in each function; and
4. Prints a count of the number of gimple statements in each function.

Before we start anything lets go ahead and recap the file structures with ll command

So if we go back and see we have these build and test directory, as well as the source directory that we ran git clone. Lets get into the source directory and get into gcc folder

We see a huge directory with a lot of different files here!  we are now going to create a file called tree-sj-pass.cc and add our basic gcc pass code as below

#include "config.h"

#include "system.h"

#include "coretypes.h"

#include "backend.h"

#include "tree-pass.h"

#include "pass_manager.h"

#include "context.h"

#include "diagnostic-core.h"

#include "tree.h"

#include "tree-core.h"

#include "basic-block.h"

#include "gimple.h"

#include "gimple-iterator.h"

namespace {

// Define pass metadata

const pass_data sj_pass_data = {

    GIMPLE_PASS,          // Pass type

    "tree-sj-pass",   // Pass name

    OPTGROUP_NONE,        // No optimization group

    TV_TREE_OPS,          // Timevar

    0, 0, 0, 0           // Default settings

};

// Custom GIMPLE pass class

class sj_pass : public gimple_opt_pass {

public:

    // Constructor

    sj_pass(gcc::context *ctxt) : gimple_opt_pass(sj_pass_data, ctxt) {}

    // Gate function - always true

    bool gate(function *fun) override {

        return fun != nullptr;

    }

    // Main execution function

    unsigned int execute(function *fun) override {

        fprintf(stderr, "Processing function: %s\n", function_name(fun));

        int basic_block_count = 0, gimple_stmt_count = 0;

        // Iterate over basic blocks

        basic_block bb;

        FOR_EACH_BB_FN(bb, fun) {

            if (!bb) continue;  // Safety check

            basic_block_count++;

            // Iterate over GIMPLE statements

            for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {

                gimple_stmt_count++;

            }

}

// Print results

        fprintf(stderr, "Number of basic blocks: %d\nNumber of GIMPLE statements: %d\n",

                basic_block_count, gimple_stmt_count);

        return 0;

    }

};

}

// Factory function to create an instance of the pass

gimple_opt_pass *make_tree_sj_pass(gcc::context *ctxt) {

    return new sj_pass(ctxt);

}

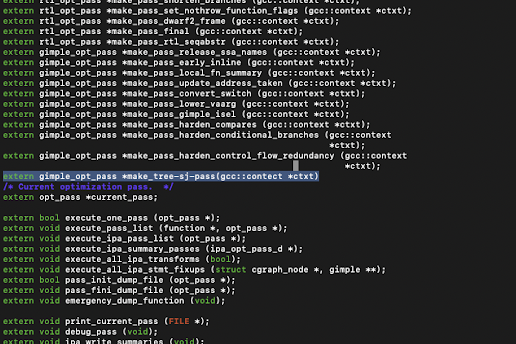

Now we are modifying tree-pass.h file to register our newly made file tree-sj-pass.cc

(Looking back made some weird mistake here with typo with dashes..as well as context typo)

Then now we are modifying passes.def

Then now we are adding tree-sj-pass.o to Makefile.in which is in the same directory to make sure that GCC includes my pass in build process.

Now since Makefile has been modified we are going to rebuild it.

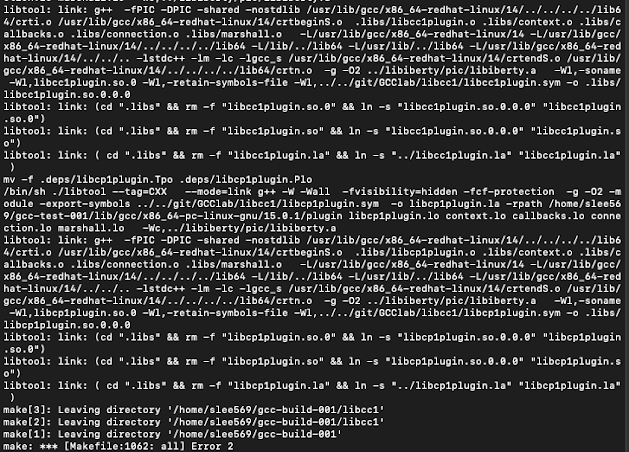

;;; currently encountering linkage error with tree-sj-pass.o, will continue to attempt and update here.

--update, seems like it was relate to namespace error,  now i am running

make clean in build directory

then build again with

time make -j$(nproc) |& tee make.log

And now we are encountering another error that is relate to configuring libgcc, currently on investigating and work in process..

RE-starting from scratch:

Currently recloning everything again to try from scratch.

Make install works successfully:

Now we are going back and adding a basic pass file again which is tree-sj.cc same as above code for basic pass but just a different names and conventions.

#include "config.h"

#include "system.h"

#include "coretypes.h"

#include "backend.h"

#include "tree-pass.h"

#include "pass_manager.h"

#include "context.h"

#include "diagnostic-core.h"

#include "tree.h"

#include "tree-core.h"

#include "basic-block.h"

#include "gimple.h"

#include "gimple-iterator.h"

namespace {

// Define pass metadata

const pass_data tree_sj_pass_data = {

    GIMPLE_PASS,         // Pass type

    "tree-sj",           // Pass name

    OPTGROUP_NONE, // No optimization group

    TV_TREE_OPS,         // Timevar

    0, 0, 0, 0           // Default settings

};

// Custom GIMPLE pass class

class tree_sj_pass : public gimple_opt_pass {

public:

    // Constructor

    tree_sj_pass(gcc::context *ctxt) : gimple_opt_pass(tree_sj_pass_data, ctxt) {}

    // Gate function - always true

    bool gate(function *fun) override {

        return fun != nullptr;

    }

    // Main execution function

    unsigned int execute(function *fun) override {

        fprintf(stderr, "[tree-sj] Processing function: %s\n", function_name(fun));

        int basic_block_count = 0;

        int gimple_stmt_count = 0;

        basic_block bb;

        // Iterate over basic blocks

        FOR_EACH_BB_FN(bb, fun) {

            if (!bb) continue;  // Safety check

            basic_block_count++;

            // Iterate over GIMPLE statements

            for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {

                gimple_stmt_count++;

            }

}

// Print results

        fprintf(stderr, "[tree-sj] Basic Blocks: %d | GIMPLE Statements: %d\n",

                basic_block_count, gimple_stmt_count);

        return 0;

    }

};

} // namespace

Save and exit, and edit tree-pass.h to add declaration for recognizing our function.

extern gimple_opt_pass *make_pass_harden_control_flow_redundancy (gcc::context

                                                                  *ctxt);

extern gimple_opt_pass *make_pass_sj(gcc::context *ctxt);

and edit passes.def to ensure pass is running during compilation

for adding NEXT_PASS(pass_sj)

and edit Makefile.in  to ensure gcc includes my above basic pass.

        tree-complex.o \

        tree-data-ref.o \

        tree-sj.o \

        tree-dfa.o \

        tree-diagnostic.o \

        tree-diagnostic-client-data-hooks.o \

        tree-dump.o \

and edit passes.def to ensure pass is running during compilation

then if you run the build command again you will see its getting built

few things to remember while debugging :
- naming convention syntaxes are of course important, double check, doublecheck

- which line you are putting all those edits are important as well

  NEXT_PASS (pass_asan_O0);

  NEXT_PASS (pass_tsan_O0);

  NEXT_PASS (pass_sanopt);

  NEXT_PASS (pass_cleanup_eh);

  NEXT_PASS (pass_musttail);

  NEXT_PASS (pass_lower_resx);

  NEXT_PASS (pass_sj);

  NEXT_PASS (pass_nrv);

  NEXT_PASS (pass_gimple_isel);

  NEXT_PASS (pass_harden_conditiona

and i run a testing file from gcc-test directory

slee569@x86-001:~/gcc-test-001$ /home/slee569/gcc-build-001/gcc/xgcc -B/home/slee569/gcc-build-001/gcc/ test.c -o test_c.out

./test_c.out

[tree-sj] Processing function: main

[tree-sj] Basic Blocks: 2 | GIMPLE Statements: 5

Hello from GCC!

PASS running test file here! hows it going!

and got the expected result that is running with my customized GCC pass.

This project was really really time consuming if you start to mess up some little details like typos... dont be like me and make sure whatever you write is consistent and keep think about the connection between .def .h makefile and your basic gcc pass. Also again make sure to edit the files in right place, i tried a lot of times with wrong placement(out of scope, linkage issue, ggc not finding certain things that i implemented, sometimes even suspecting xgcc might be corrupted but it turned out that i was the one who made mistakes on editing files..) i think its all coming from what we edited so make sure its in right lines.


------------------------------------------------
Summary:

🔴 Configuration Issues: Cache and environment inconsistencies made it hard to get a clean build.
🔴 Pass Registration Errors: Undefined references and missing make_pass_sj() function led to failed builds.
🔴 GCC Compilation Complexity: Minor changes could break the build, requiring a lot of debugging.

✅ Successful Build: Despite errors, we eventually got a working customized GCC!
✅ Custom Pass Execution: tree-sj executed and provided basic block & GIMPLE statistics.
✅ Improved Debugging Skills: Learned to analyze config.log, build.log, and compiler errors efficiently.

Final Takeaway:

This project was a hands-on journey into compiler design, teaching us how GCC compiles, optimizes, and executes code. We overcame tough debugging challenges and built a working custom pass, reinforcing our understanding of compiler internals and optimization techniques.
